Product Descriptio:
European Type Double Girder Bridge Crane
Usage:
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency, saving cost and improving working conditions
Double beam (girder) crane generally refers to the double beam (girder) bridge type crane. European double girder bridge crane is an updated model. It is composed of three parts: mechanical, electrical and metal structures. The external image of the bridge crane is a single span flat plate bridge supported on two parallel overhead tracks. Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.
Advantages and Feature:
1. Effective and optimization design minimize the self-weight and ensures safety, stability and intensity.
2. European optimized design, low gravity, small wheel pressure, space saving and lifting weight upto 80t.
3. Flexible driving, extensive adaption, excellent frequency conversion control, stable operation, low maintenance and easy replacement.
4. Steel material standard is Fe37 or Fe52, web by the whole 40m CNC cutting to ensure curve smooth and precision molding.
5. Safety power conductor system and configuration phase protection function, with IP55 protection class.
6. First class lifting unites and free maintenance.
7. Convenient wireless remote control and easy ground control, additional driver is unnecessary. Pendant control: IP65, 500,000 times life.
8. High strength, good rigidity, light weight and excellent material ensure stability and convenient operation.
9. All parts are highly cost effective, highly standardized, with high accuracy, reliable quality and stable performance, also easy to install and freely combine.
10. Excellent performance, frequency control, easy and smooth operation meet various usages of all users.

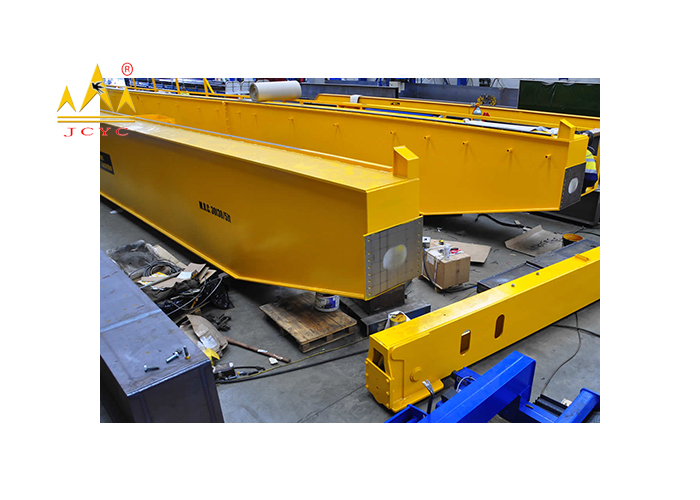

Photo:
Parameter:
| Capacity(t) | 5 | 10 | 16/5 | 20/5 | 32/5 | 40/5 | 50/10 | 63/10 | 80/20 |
| Lifting Mechanism | Lifting Speed(m/min) | Lifting of the Load | 0.8/5 | 1/6.3 | 0.8/5 | 0.66/4 | 0.66/4 | 0.53/3.4 | 0～4.9 | 0～4.9 | 0～4 | 0～3.2 | 0～3.2 |
| Deputy Lifting | / | / | / | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| Job Level | M5 | M4 | M5 | M5 | M4 | M5 | M5 | M4 | M4 | M5 | M4 |
| Lifting Height(mm) | 6/9/12/15/18 |
| Span(m) | 7.5～36 |
| Operating Mechanism | Trolley | Rail Distance | 1400/1700/2000/2400/2700/3100 |
| Running Speed(m/min) | 0～20 |
| Job Level | M5 |
| Wheel Diameter(mm) | ∮160 | ∮220 |
| End Carriage | Base Distance(mm) | 2200～3700 |
| Running Speed(m/min) | 0～30 |
| Job Level | M5 |
| Wheel Diameter(mm) | ∮160 | ∮200 | ∮250 | ∮315 | ∮400 |
Warm Note:
OEM, ODM, sample, trial and mixed orders are all ok. Welcomes contact us for more information.
